SKU: KREL-3
- Specifications
- Gear Ratio = 20:1
- String Post length overall locking = 27.5mm
- Center String thru hole height on post = 23mm
- Locking mechanism = Knob on back of housing
- Mounting Hardware included
- Mounting hole placement = 6 O\'Clock low
- String Post material = steel
- Housing material = die cast zinc
- Gear material = Steel worm/brass ring
- Description

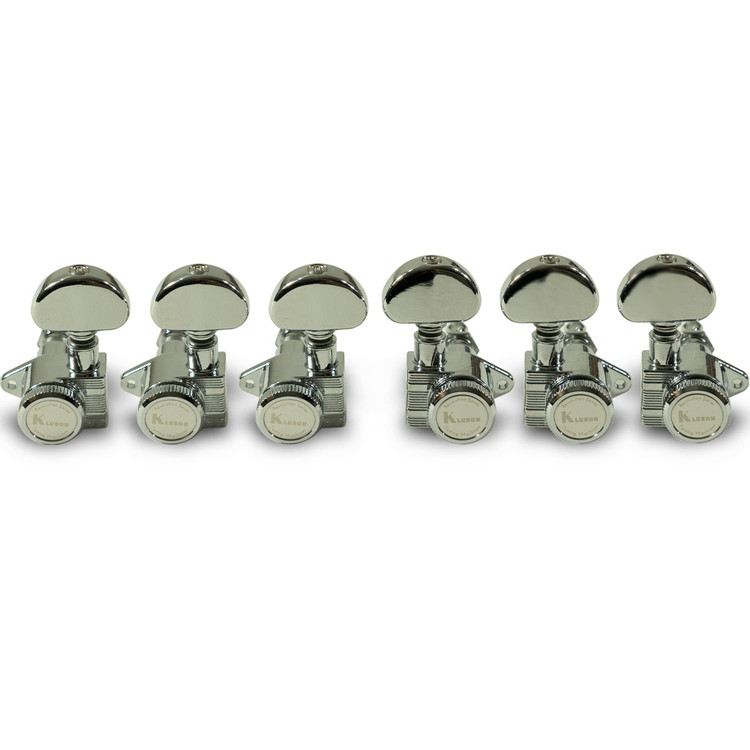

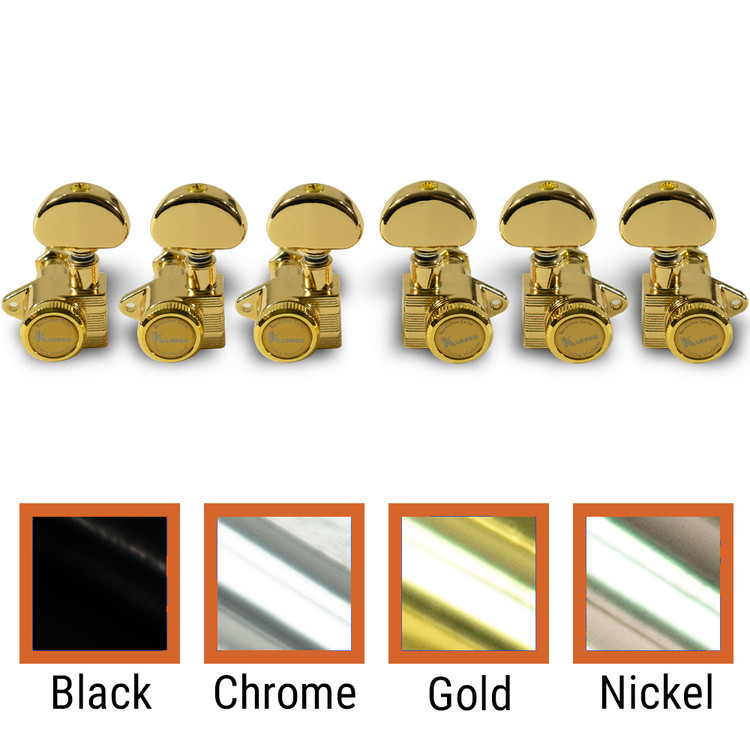

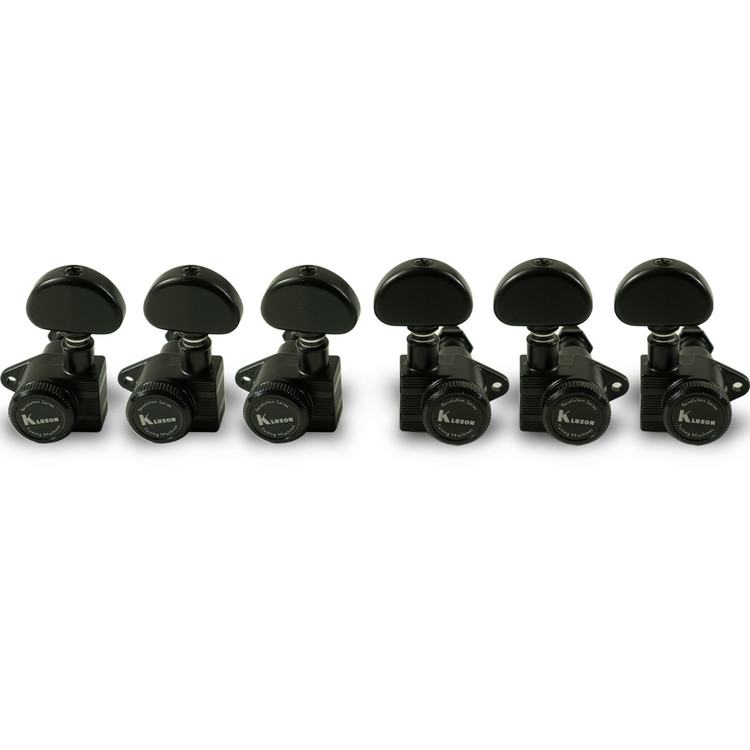

Kluson's® new Revolution E-mount tuning machines are die-cast construction and have the brand new 20:1 gear ratio and are available in both locking and non-locking formats. This all-new Kluson® design incorporates today's standard 10mm peghole mounting with a single screw at 6 O'clock low in conjunction and screw-in bushing and washer. Kluson® designed this new tuning machine type to fit many of the electric and acoustic instruments manufactured post 1970, giving you the option in many cases for a non-modification required upgrade in both performance and appearance. This new Revolution E-mount tuning machine set is available in black, chrome, gold and nickel finishes and all mounting hardware needed is included.
- Specifications
- Gear Ratio = 20:1
- String Post length overall locking = 27.5mm
- Center String thru hole height on post = 23mm
- Locking mechanism = Knob on back of housing
- Mounting Hardware included
- Mounting hole placement = 6 O\'Clock low
- String Post material = steel
- Housing material = die cast zinc
- Gear material = Steel worm/brass ring
- Description
Kluson's® new Revolution E-mount tuning machines are die-cast construction and have the brand new 20:1 gear ratio and are available in both locking and non-locking formats. This all-new Kluson® design incorporates today's standard 10mm peghole mounting with a single screw at 6 O'clock low in conjunction and screw-in bushing and washer. Kluson® designed this new tuning machine type to fit many of the electric and acoustic instruments manufactured post 1970, giving you the option in many cases for a non-modification required upgrade in both performance and appearance. This new Revolution E-mount tuning machine set is available in black, chrome, gold and nickel finishes and all mounting hardware needed is included.
