SKU: KRH-6BX
- Specifications
- Peghole size required= 25/64 in. (10mm)
- Gear ratio= 19:1
- Bushing Type= Screw-in Hex Head
- String Post Type= Staggered Kluson SafeTi Post
- String Post Heights=
- (2 Machines) 18mm
- (2 Machines) 19mm
- (2 Machines) 20mm
- String Post Diameter= ¼"
- Description

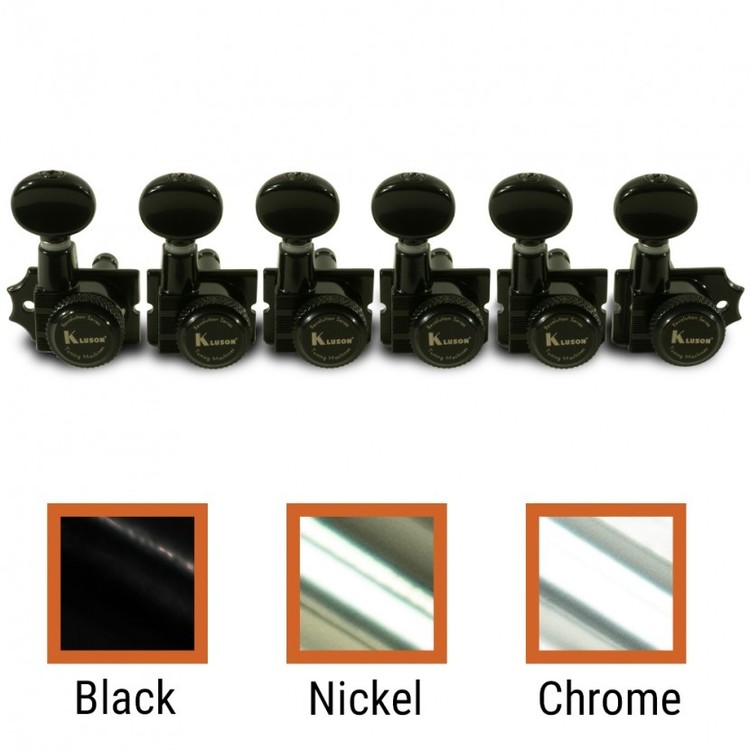

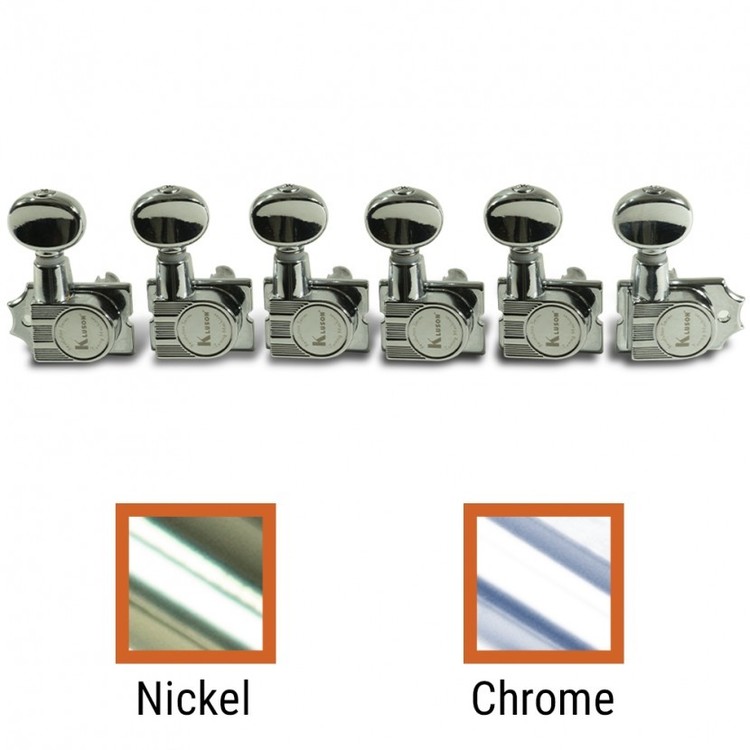

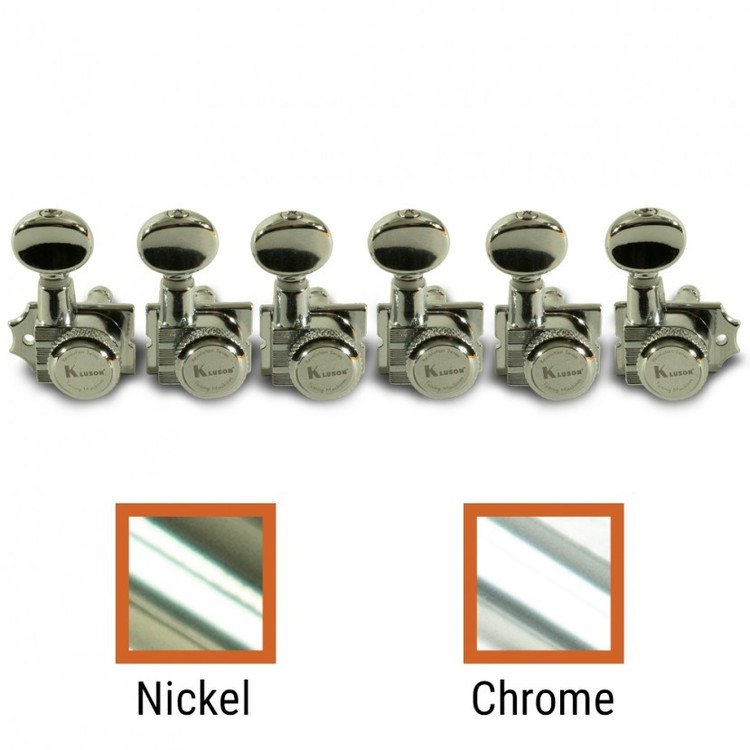

The Kluson® Revolution H-Mount 19:1 high ratio tuning machine. A traditional 6 in line footprint with contemporary sealed diecast housing.
These state of the art tuning machines are designed to directly retrofit diecast tuning machines with a hex head (bolt) bushing, traditional Kluson® 6 in line mounting pattern and modern 25/64 inch peghole. The vintage outline, metal oval button and pinstripes pay tribute to Kluson® heritage while the stylized one-piece housing encloses the features that modern guitarist demand. A 19:1 high gear ratio guarantees silky smooth operation and fine tuning stability with no backlash.

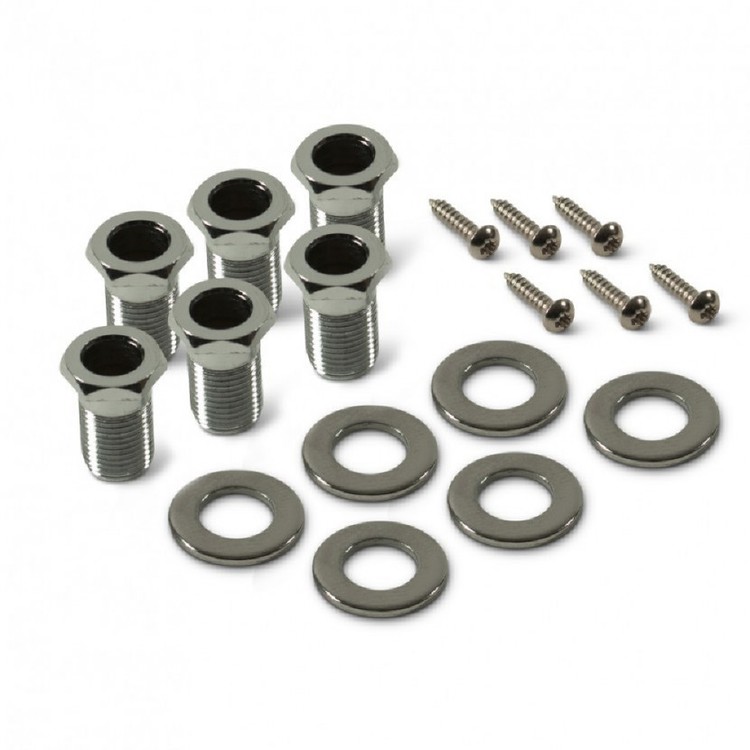

Includes 6 in line tuning machine set for right handed instruments and all mounting hardware.

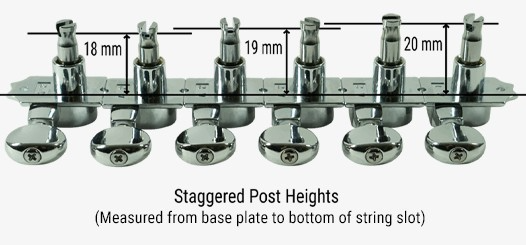

Newly upgraded with staggered post heights. Staggered posts negate the need for a traditional string tree. By eliminating the string tree, the break point created on the string before the nut is also removed; increasing string life, resonance, and tuning stability.
