SKU: KVDB
Description

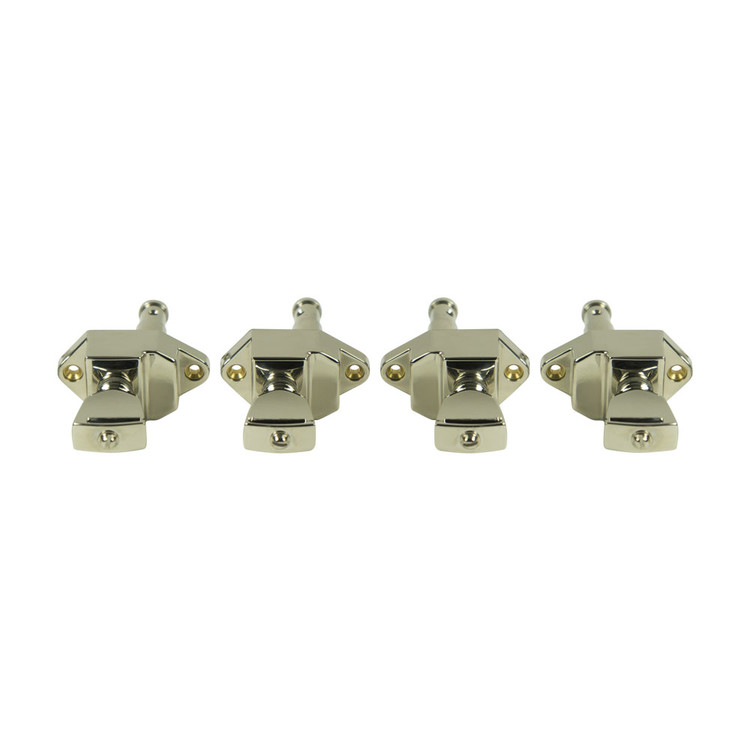

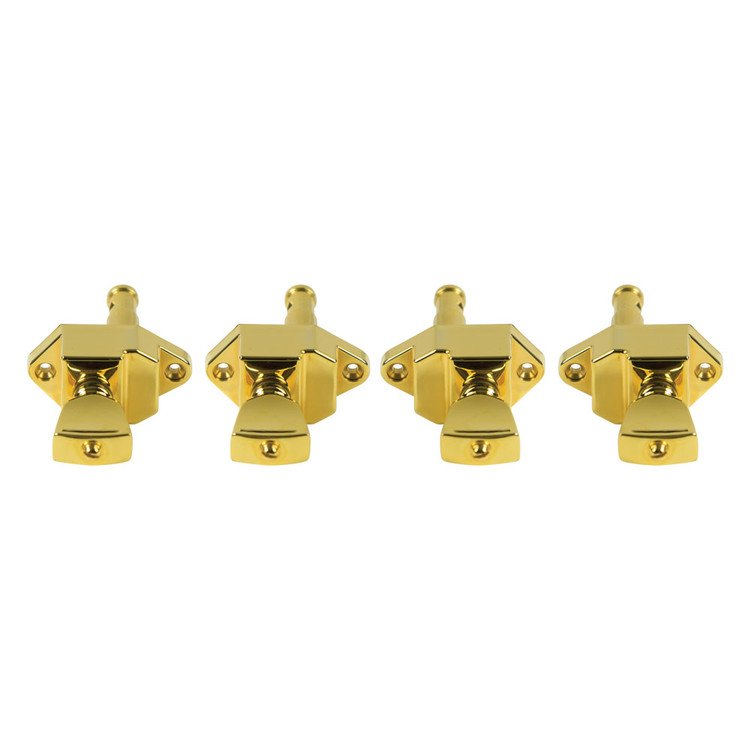

Kluson® 2 Per Side Or Single Vintage Diecast Series Bass Or Banjo Tuning Machines
Kluson®'s reissued Bass/Banjo tuning machines! Staying true to the design in virtually every aspect using planetary gears with a 12:1 ratio (wind rate = to 14.6:1 ratio), the exact mounting screw pattern, housing size and appearance with the 5/16 inch string post. Because these tuning machines have a larger string post they do require the original larger peg hole which is very similar in size to what is used for modern diecast tuning machines.

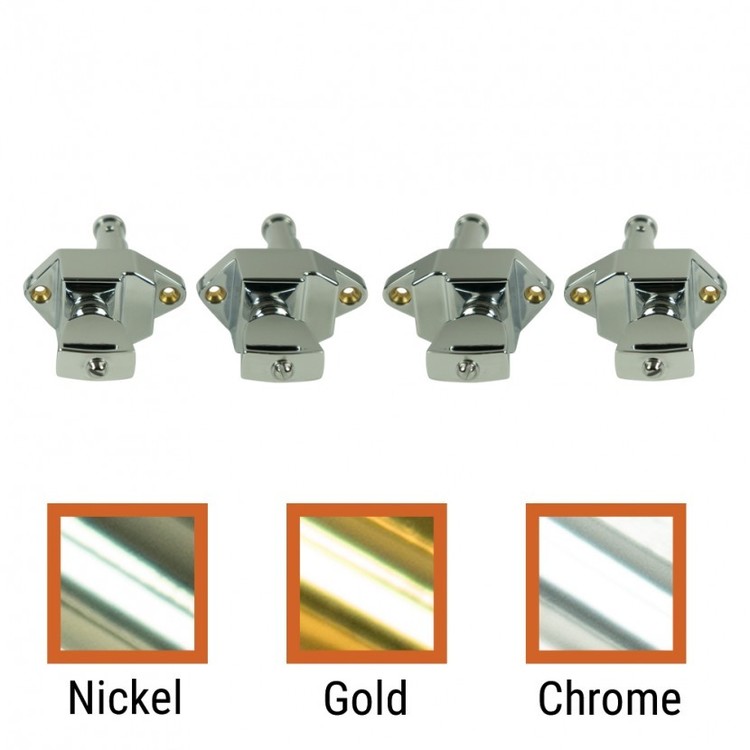

The “Tâ€ย and “Bâ€ย on the bottom plates depict treble or bass side and are only visible when tuning machine is not installed. Available in gold, nickel and chrome plating in sets of 2 + 2 for banjo and bass or individually as listed here.
Specifications
[SKU:KVDB]
- Button Shaft= 5/32 in. (3.97mm) w/ opposing flat sides
- Button Screw= 4-48 N.F. tap
- String Post Diameter= 5/16 in.
- Gear Ratio = 12:1 Planetary
- Wind Ratio Equivalent= 14.6:1

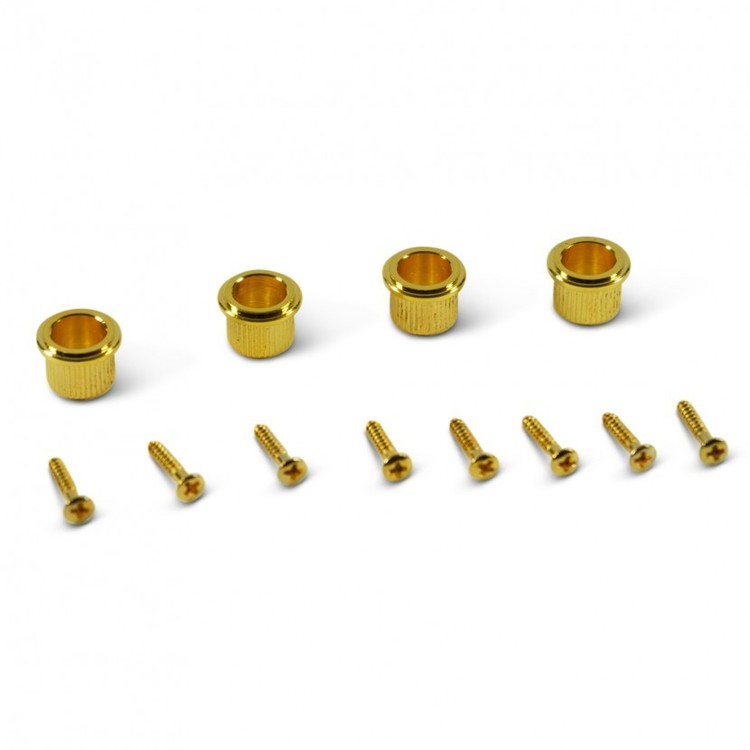

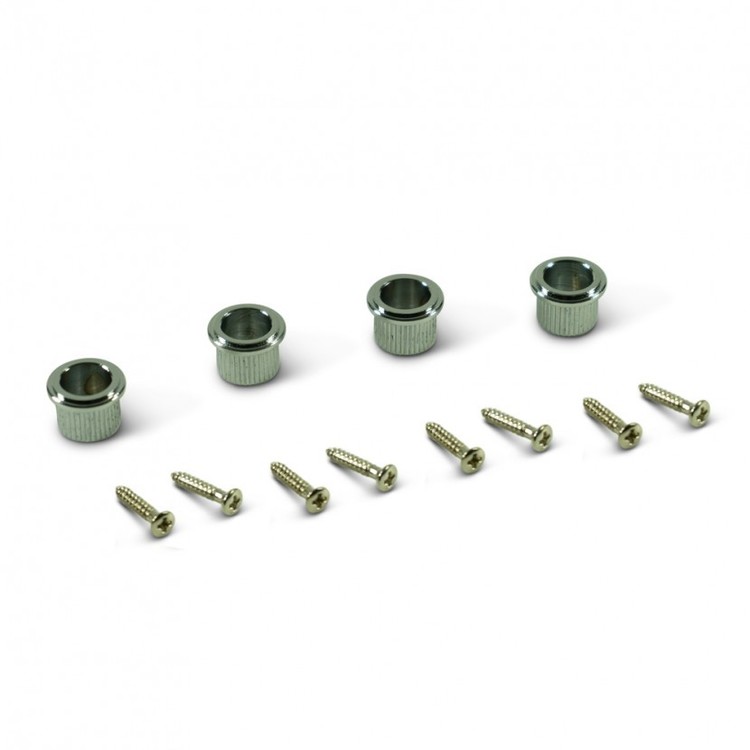

- Mounting Screws= #4 X 1/2 in. Phillips raised head Countersink screw
- Bushing= 13/32 in. (10mm) O.D. X 5/16 in I.D.
- Total Post Length = 1 1/16 in. (27mm)
- Bottom of Post to String Hole = ¾ in. (19mm)
