Kluson #7 Trapeze Tailpiece
$74.40
SKU: K7TP
- Specifications
[SKU: K7TP]
- Tailpiece Length (without hinge) = 3 35/64" or 89.93mm
- Length of Bar = 2 15/16" or 74.59mm
- Width of Bar = 13/32" or 10.37mm
- String Spacing at Bar = 1 61/64" or 49.78mm
- Mounting area of hinge length = 2 7/32" or 56.20mm
- Mounting area of hinge width = 1 13/32" or 35.93mm
- Mounting hole location bottom center = 17/64" or 6.62mm from bottom edge
- Two mounting hole locations from side edges = 11/32" or 8.59mm
- Two mounting hole locations apart from each other = 1 33/64" or 38.37mm
- Description

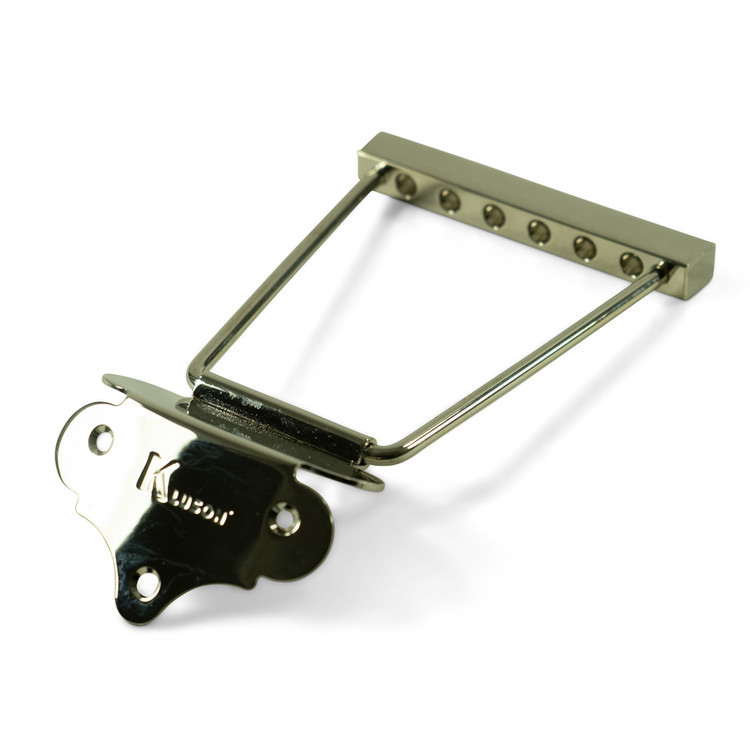

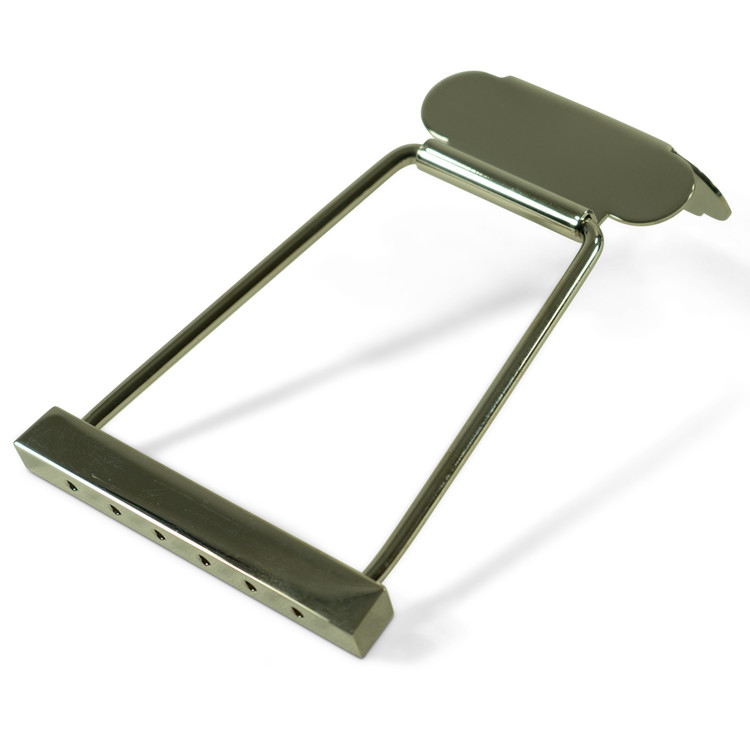

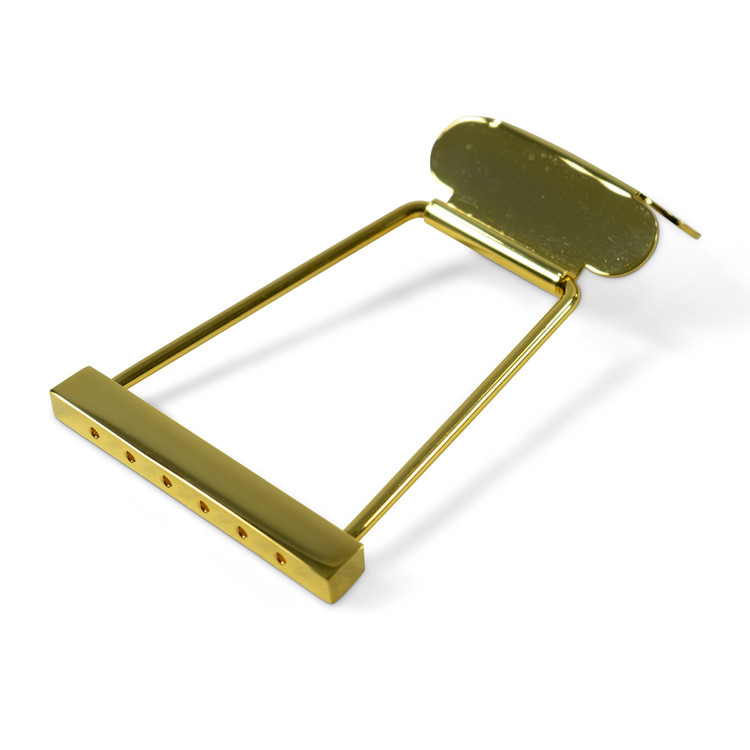

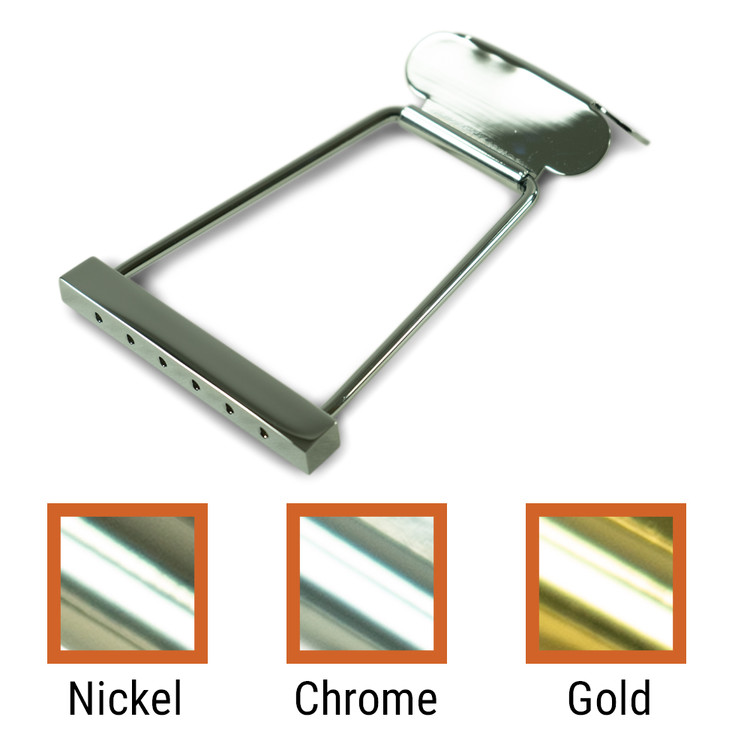

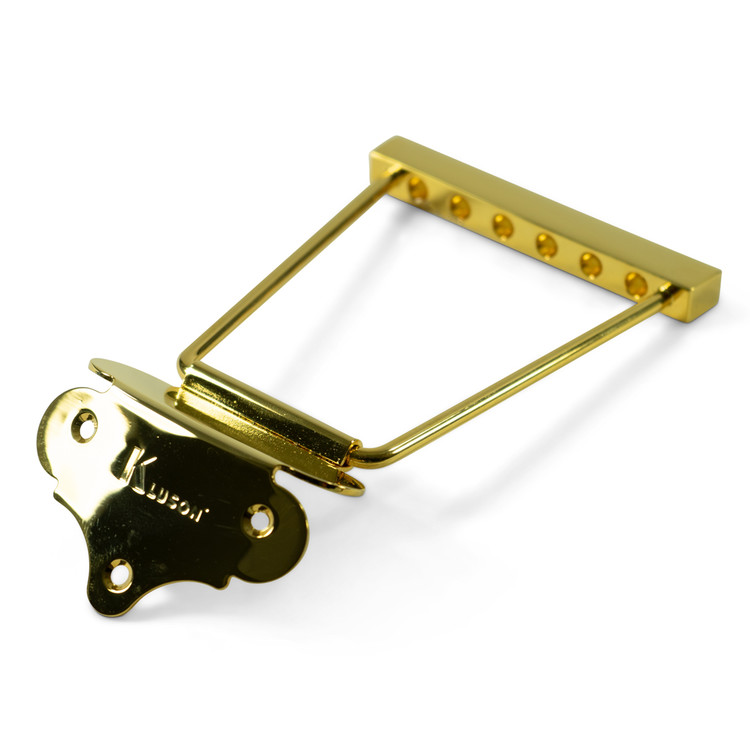

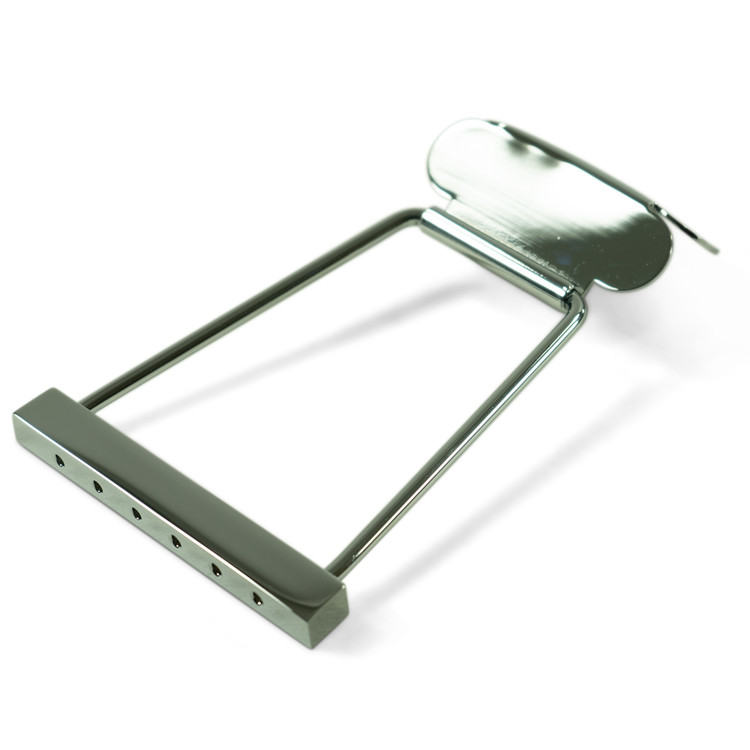

This is Kluson®â€™s version of the #7 tailpiece. Available in chrome, gold, and nickel.
- Specifications
[SKU: K7TP]
- Tailpiece Length (without hinge) = 3 35/64" or 89.93mm
- Length of Bar = 2 15/16" or 74.59mm
- Width of Bar = 13/32" or 10.37mm
- String Spacing at Bar = 1 61/64" or 49.78mm
- Mounting area of hinge length = 2 7/32" or 56.20mm
- Mounting area of hinge width = 1 13/32" or 35.93mm
- Mounting hole location bottom center = 17/64" or 6.62mm from bottom edge
- Two mounting hole locations from side edges = 11/32" or 8.59mm
- Two mounting hole locations apart from each other = 1 33/64" or 38.37mm
- Description
This is Kluson®â€™s version of the #7 tailpiece. Available in chrome, gold, and nickel.
